팝니다 상세페이지
덕주코리아

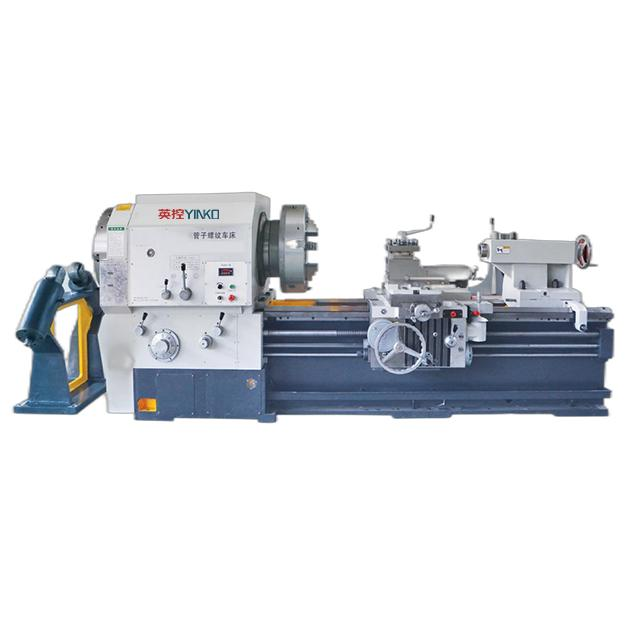

대주축경선반 주축경 190파이

가격협의
  • 분류 대형선반
  • 제조회사 중국 신품
  • 제조년도 2024년 03월
  • 제품위치 해외
  • 제품상태 아주좋음
  • 규격 630*2000
  • 담당자 덕주 코리아
  • 이메일 sksea99@hanmail.net
제품 및 부속품 설명

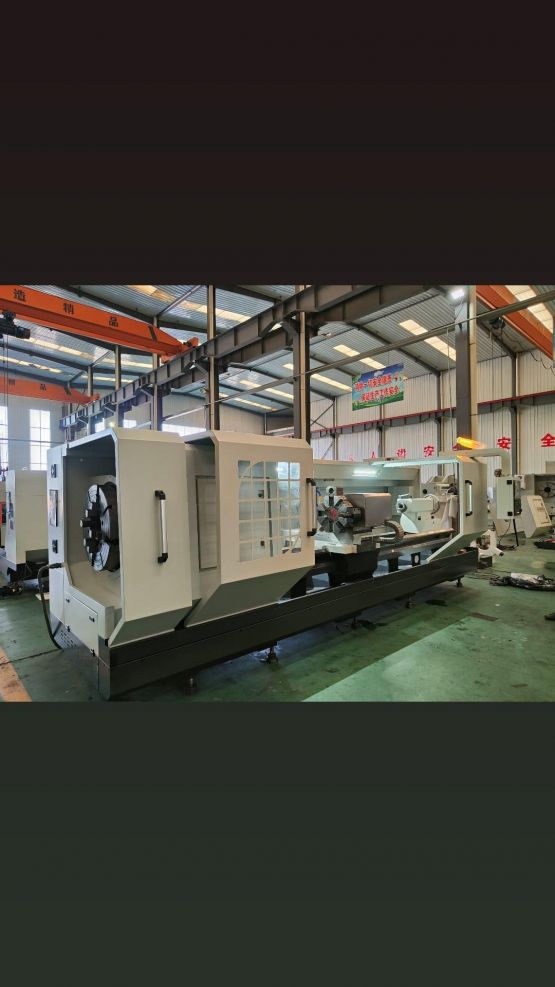

대주축경 190파이 630*2000  중국 신품선반 취급전문  덕주코리아

문의 010 2845 4417

문의 시  대주축경 선반  상세정밀견적  바로  바로  제공합니다


Product descriptions from the supplier

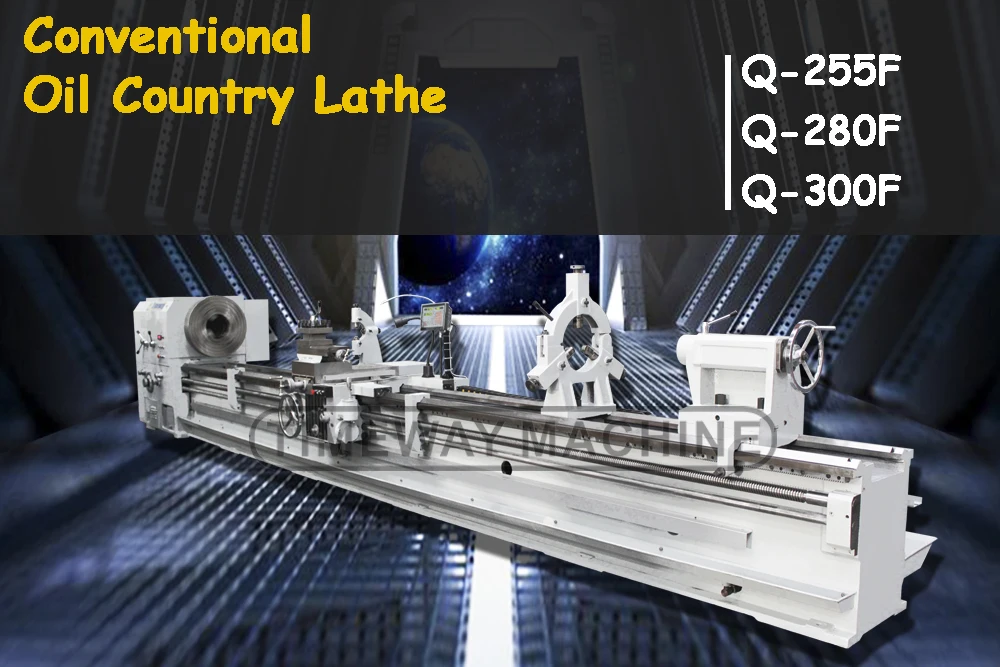

Overview
Products Description

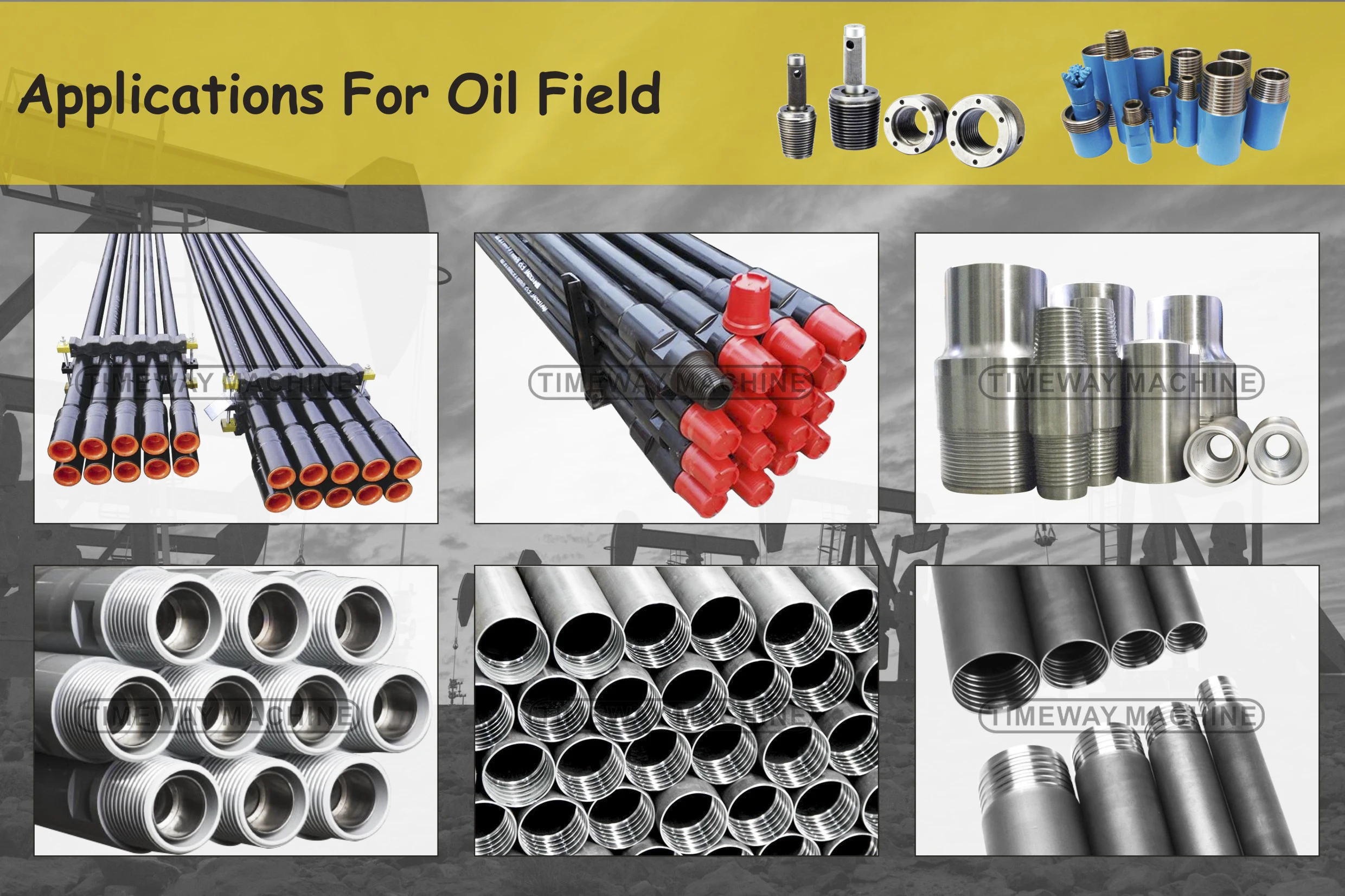

Applications of the oil country lathe:
The oil country lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.
››››› The lathe is equipped with a taper turning attachment which can work out long taper.
››››› The lathe is equipped with double chucks which can powerful clamp long parts.

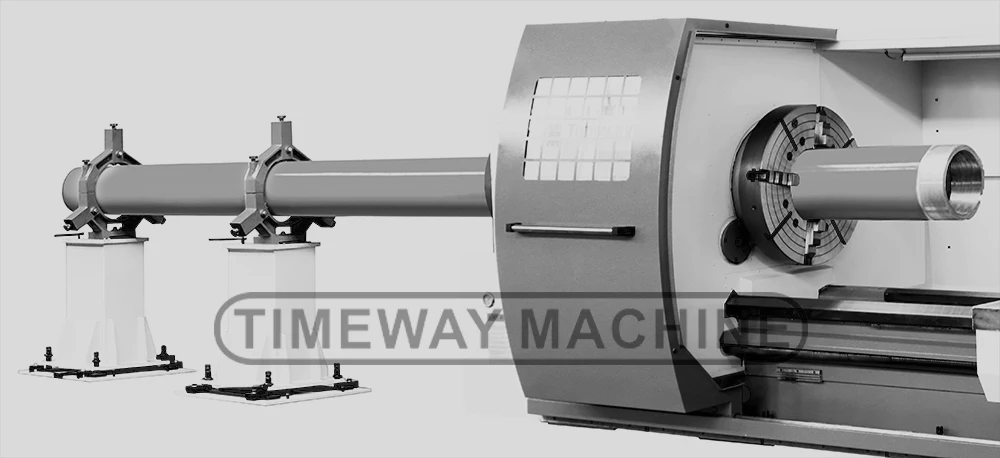

››››› The lathe is equipped with rear support which can auxiliary support longer parts.
√ Big bore chuck (Front & Rear)
√ Dead centers
√ 4-station tool-post
√ Taper turning attachment
√ Cooling system
√ Work lamp
√ Chip collecting plate
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

_ Steady rest
_ Follow rest
_ Rear support for long pipe
_ Live centers
_ 2 or 3-axis DRO
_ Quick changing tool post
_ Chuck guard
_ Tool post guard
_ Rear splash guard


Specification
Unit
Q-255F
Q-280F
Q-300F
Max. swing over bed
mm
800
800
800
Max. swing over cross slide
mm
480
480
480
Distance between centers
mm
1500/3000
1500/3000
1500
Pipe threading range
mm
120-250
130-270
300
Bed width
mm
600
600
600/650
X-axis travel
mm
420
420
420
Z-axis travel
mm
1350/2850
1350/2850
1350
Max. load capacity
kg
4000
4000
4000
Spindle bore
mm
255
280
305
Spindle speed steps
steps
4steps (inverter)
4steps (inverter)
2steps (inverter)
Spindle speed
rpm
20-400
20-400
20-300
Chuck size
mm
630
630
630
Chuck type (manual)
-
4-jaw
3-jaw
4-jaw
Turret type (manual)
-
V4
V4
V4
Tool shank size
mm
32x32
32x32
32x32
X-axis feed range (steps)
mm/r
0.02-0.45 (22)
0.02-0.45 (22)
0.095-14 (32)
X-axis rapid feed speed
mm/min
2300
2300
1870
Z-axis feed range (steps)
mm/r
0.07-1.33 (26)
0.07-1.33 (26)
0.095-14(32)
Z-axis rapid feed speed
mm/min
4000
4000
3740
No. of Metric thread and range
mm
1-15
1-15
1-15 (22)
No. of Inch thread and range
TPI
14-1
14-1
14-1 (26)
Tailstock quill diameter
mm
120
120
100
Tailstock quill taper
-
MT6
MT5
MT6
Tailstock quill travel
mm
250
250
250
Main motor power
kw
15
15
15
Rapid motor power
kw
1.1
1.1
1.1
Coolant motor power
kw
0.125
0.125
0.125
Machine dimensions (LxWxH)
mm
4100/5600x1700x1600
4100/5600x1700x1600
4100/5600x1700x1600
Machine weight
kg
8000/9000
8000/9000
8000/9000

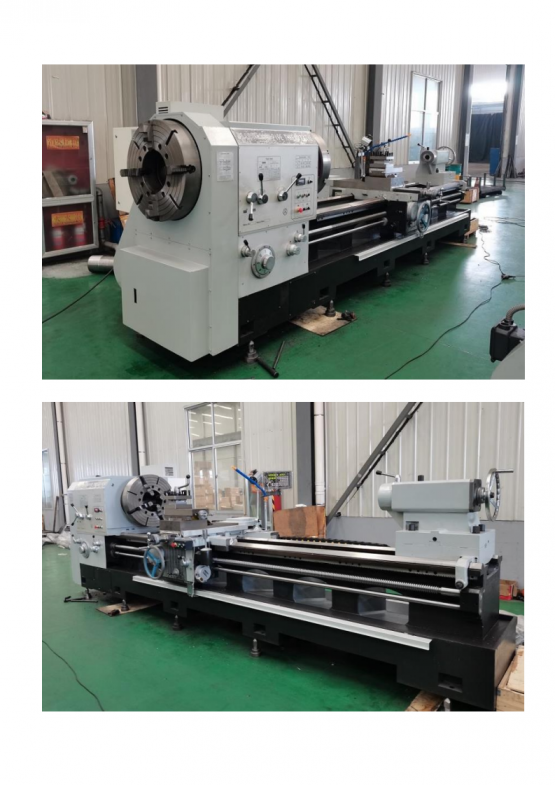

Machine Details

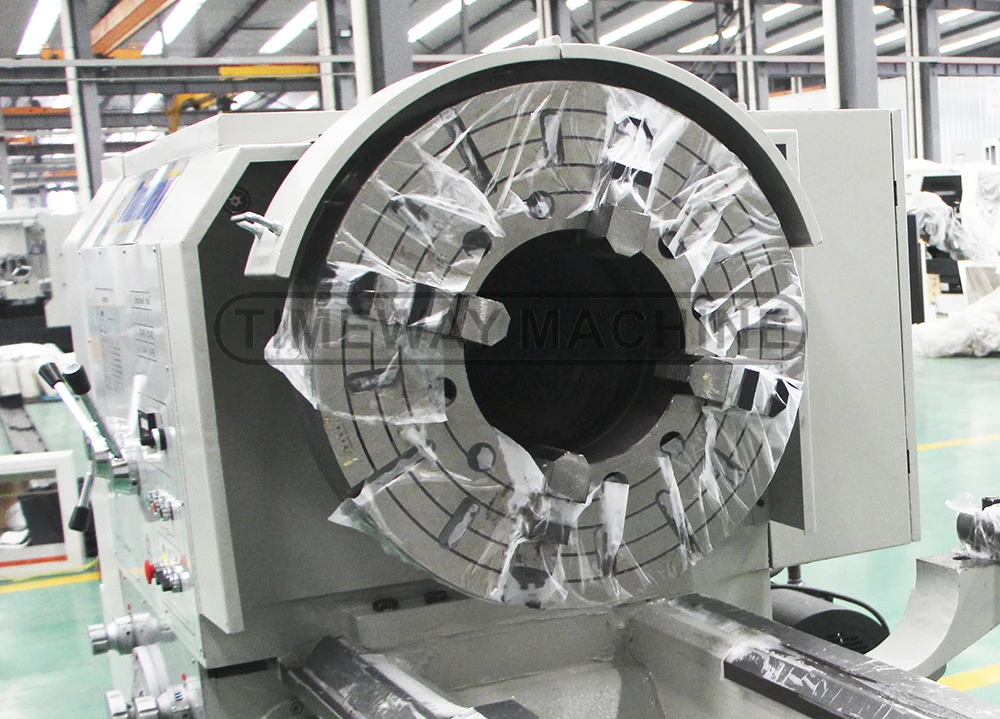

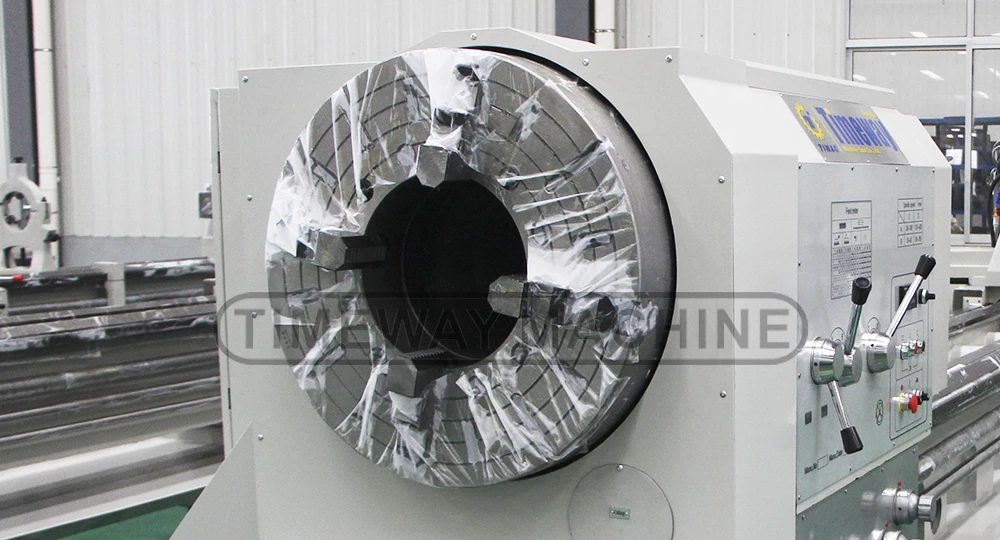

Double chucks (Front & Rear):

The lathe standard is equipped with dual chucks (3-jaw or 4-jaw), the spindle can meet different diameter long-bars, the spindle bore includes 130mm, 200mm, 225mm, 255mm, 280mm, 300mm, 330mm, 360mm, 390mm, 440mm, 520mm, 630mm, and customized spindle bore ( 5.1" ~ 24.8” ).

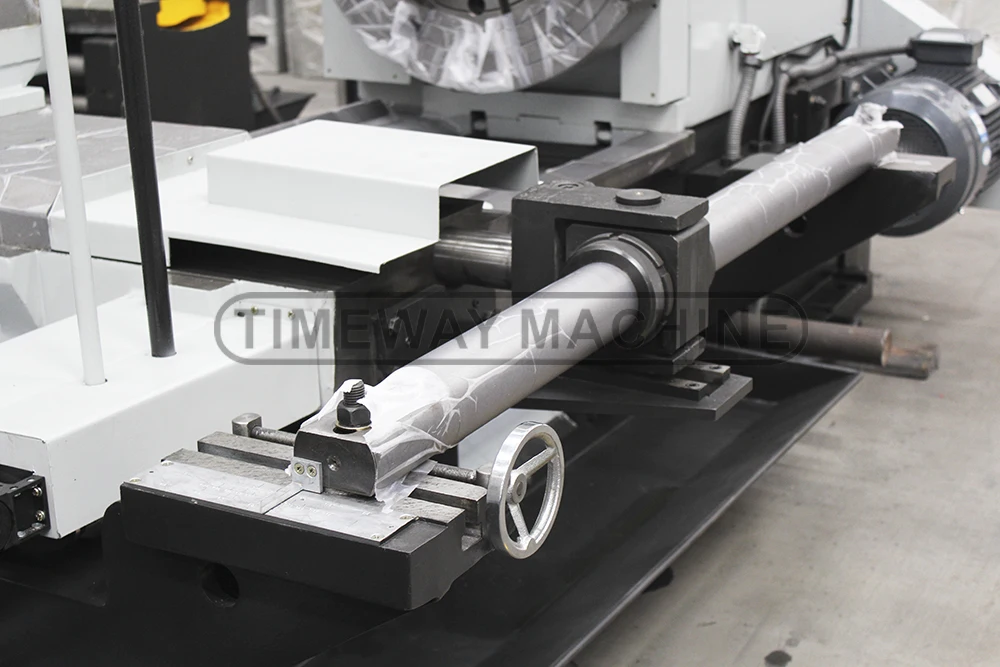

Taper turning attachment:

The taper turning attachment is a standard configuration for the oil country lathe, the lathe can cut different tapered angle long cone and taper threads by the taper turning attachment.

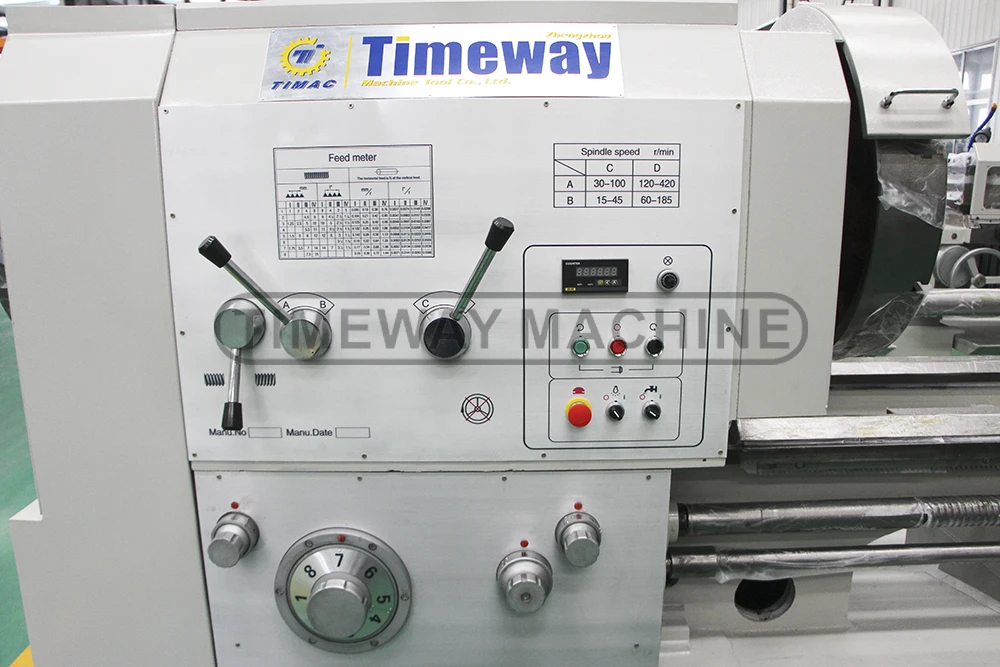

Spindle box:

- Wide spindle speeds for different processing requirements.

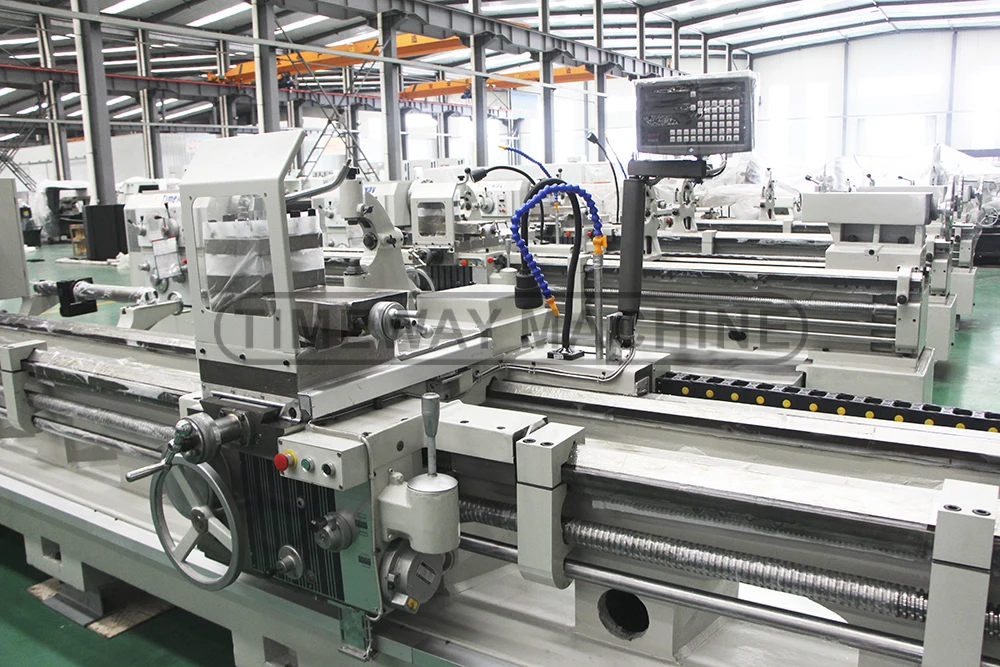

4-stations turret:

- Adopt famous brand manual turret, high positioning accuracy.

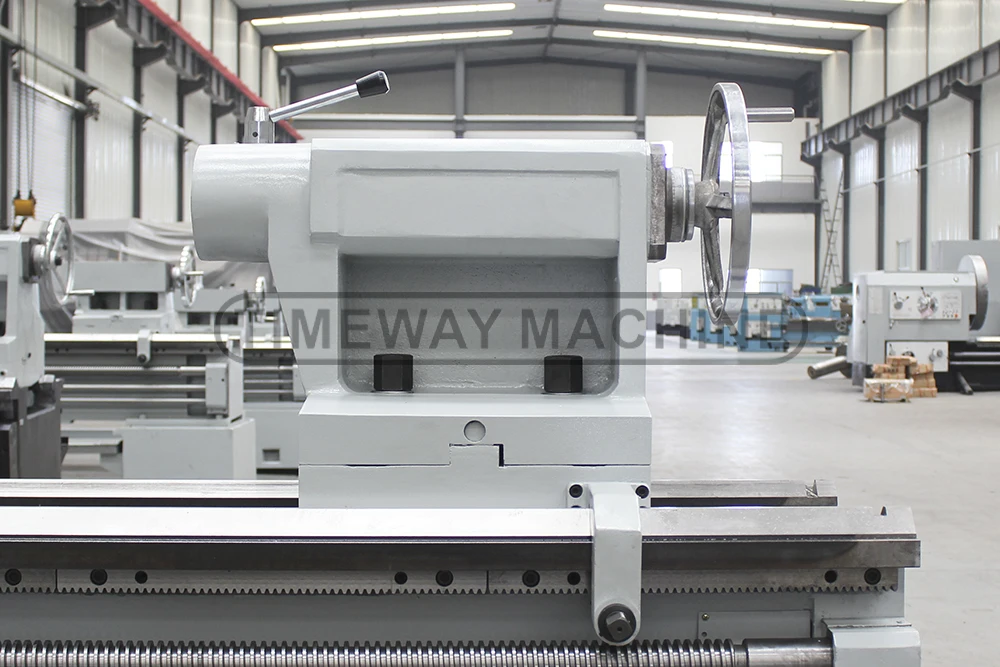

Tailstock:

- Manual moving tailstock comes standard, the electric moving taisltock comes optional.

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um

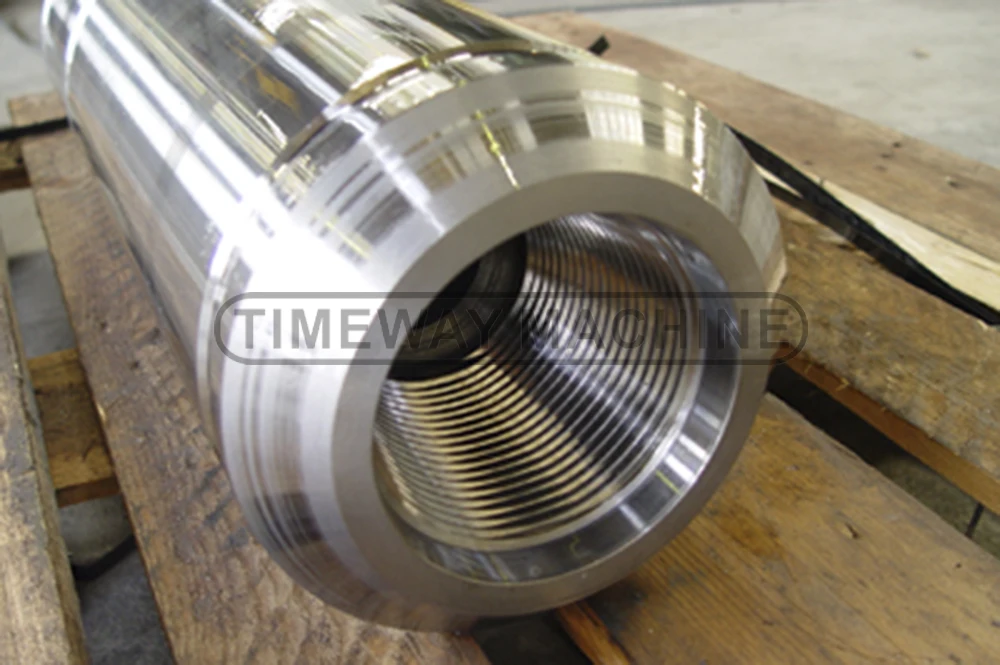

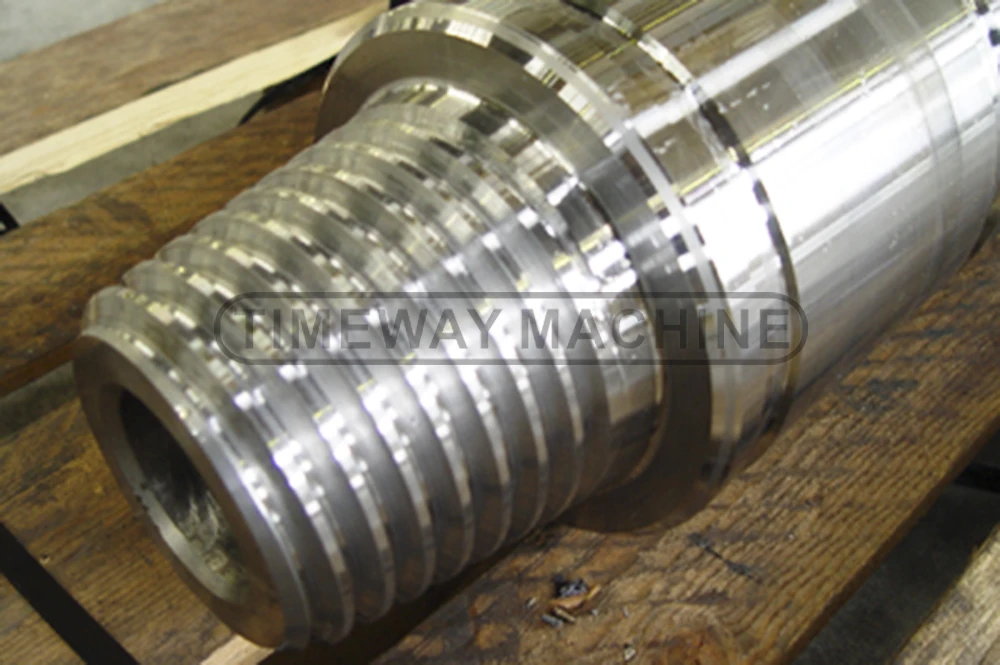

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.

Comprehensive testing parts (only for CNC oil country lathe):

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
\중국 덕주기상창 한국총판 덕주코리아

중국 선반과  딮홀 가공기  일체



타 주요 취급 중국 공작기계 안내

1.와이어 컷팅기(몰리브덴)전혀 부담없는 가격/납기신속/시운전 사후관리 철저

2.칼날연마기  평날/원형날/각종 특수 칼날연마기일체 (기계및연마석일체)

3.레이져 용접기1500W/2000W/3000W 염가형

4.각종 밀링기와  레디얼

5.프레스  초소형 탁상 펀칭/CS프레스 소형 특수규격

6.각종 연마기 평면/원통/공구 /로타리 등

7.각종 소형공무장비/대형 플란트 공무장비






DAESANG MACHINE DEZHOU KOREA CORP.   TEL:82-2-2068-3312

M:010-2845-4417  E-MAIL :sksea99@daum.net

CHINA DEZHOU  PRECION www.dzjc.com GRINDER www.sunnyfreeport.com
