덕주코리아

cnc 밀링

가격협의

분류 CNC밀링
제조회사 중국
제조년도 2023년 11월
제품위치 해외
제품상태 아주좋음
규격 2000*3000/4000/5000/6000
담당자 덕주 코리아
이메일 sksea99@hanmail.net

문의전화01028454417

덕주코리아

스토어바로가기

판매자 인기제품

제품 및 부속품 설명

중국 밀링기 선도업체 웨이다 기상창

홈페이지 참조후 문의 덕주코리아 010 2845 4417

www.weida-mc.com

면삭밀링기 대형 2000*3000/4000/5000 염가로 공급합니다

작은규격도있음

1600*2000 heavy duty type

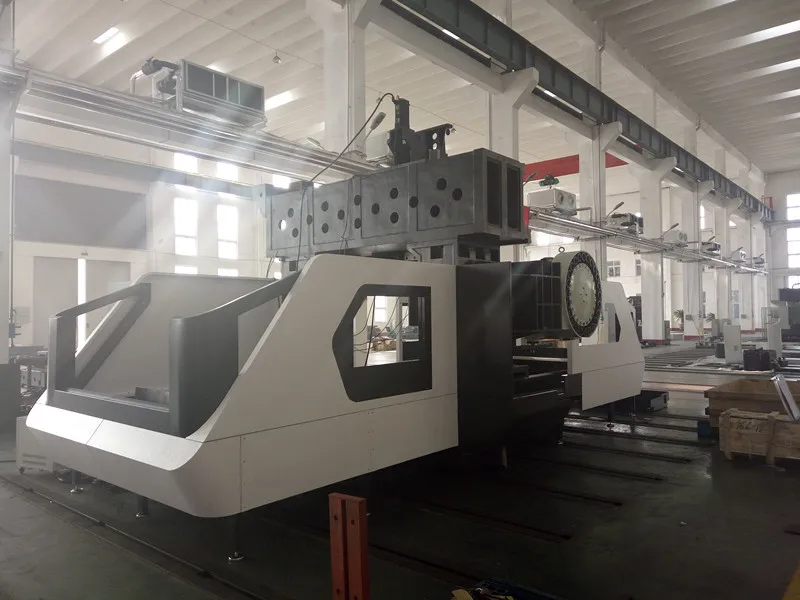

GMC1525 bridge type heavy cutting cnc gantry machining center

GDC1620 cnc gantry type drilling and milling cut machining center

Product Description

GDC1620 cnc gantry type drilling and milling cut machining center

Introduction

GDC1620 cnc gantry machining center is with frame structure, with grinding sliding guide, according to a good rigidity, strong shock absorption, processing a wide range of good stability, the machine with milling, boring, drilling (drilling, expansion, hinge), tapping, Countersink and other processing functions, can be equipped with a variety of accessories milling head, with manual change function, to expand the processing range of the machine, parts can be completed at the same time a number of processing steps.

The product structure and process maturity, quality and stability. Applicable to the automotive, ship, printing, packaging, textile, military, mold and other mechanical processing areas. Machine tools with high efficiency, high precision, high rigidity and other characteristics, is the enterprise efficient, high-volume parts of the ideal choice.

Specification

Item		Unit	Spec.
Machining range	Width of table	mm	1600
	Length of table	mm	2000
	Max. Load of worktable	kg	2000
	Distance between column	mm	1800
	Distance between vertical spindle to table surface	mm	150-650
	T slot	mm	9x22
Table travel	Max. Travel of X	mm	2000
	Max. Travel of saddle-Y	mm	1600
	Max. Travel of ram-Z	mm	500
Spindle	Motor power	kW	15/18.5
	Speed range	rpm	10-3000
	Max. torque	N.m	230
	Max. broach	N	15000
	Taper of spindle		BT50
	Max.drilling diameter	mm	Ø40
	Largest tapping diameter cast iron	mm	M24
	Largest tapping diameter carbon steel	mm	M20
Cutting feed speed range		mm/min	1-4000
Rapid feed speed		m/min	12/12/8
Straight- platoon type tool magzine	Tool magazine capability	Qty	14
	Max.diameter of tool	mm	Ø125
	Max.long of tool	mm	350
	Min.time of tool change	S	6
Positioning accuracy	X	mm	0.020
	Y	mm	0.015
	Z	Mm	0.010
Repeat Positioning ccuracy	X	mm	0.01
	Y	mm	0.01
	Z	mm	0.01
Overall dimension	Length	mm	5200
	Width	mm	3200
	Height	mm	3080
Machine weight (about)		kg	140000

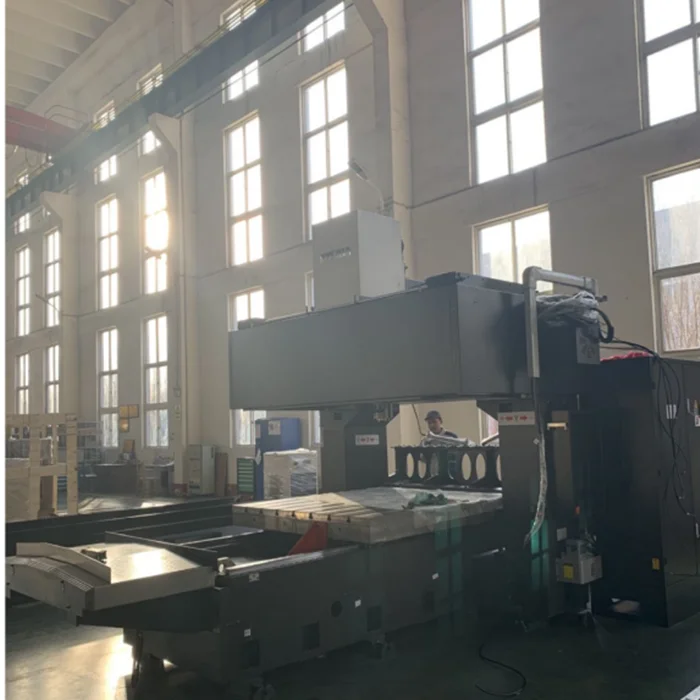

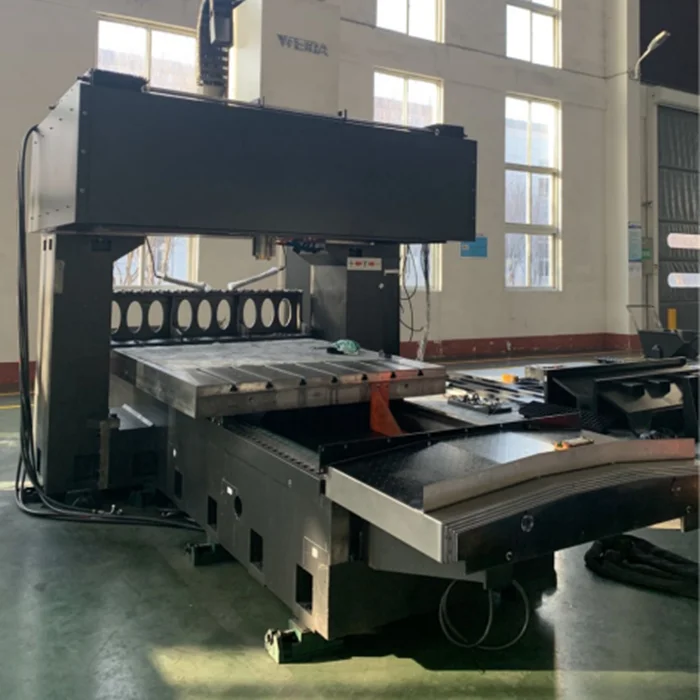

Detailed Images

GDC1620 cnc gantry type drilling and milling cut machining center

Professional testing

GDC1620 cnc gantry type drilling and milling cut machining center

Packaging & Shipping

GDC1620 cnc gantry type drilling and milling cut machining center

Machine: GDC1620 cnc gantry type drilling and milling cut machining center

Package type: Plywood case

Quantity:5 cases

Package dimension:

Container type: 2*40GP

Certifications

문의 010 2845 4417

Product descriptions from the supplier

Product Description

GMC 0916 CNC gantry-type heavy cutting machining center small gentry type machining center

Fixed beam gantry type milling machine X2010

GMC 0916 CNC gantry-type heavy cutting machining center small gentry type machining center

Specification			Unit	GMC0916
Table effective size		Length	mm	1600
		Width	mm	900
T slot			mm	5-22-180
Max. load of table			kg	3000
Table travel			mm	1800/1400/800
Gantry width			mm	1300
Milling head	Power		kw	15
	Spindle taper			BT50
	Speed range		r/min	10-3200
Spindle motor power			kw	15/18.5
Overall dimension	L		mm	6200
	W			3900
	H			4580
Machine weight			t	13000

GMC 0916 CNC gantry-type heavy cutting machining center small gentry type machining center

FAQ

Payment terms:

1. TT 30% advance payment before production, pay the balance before delivery

2. LC at sight

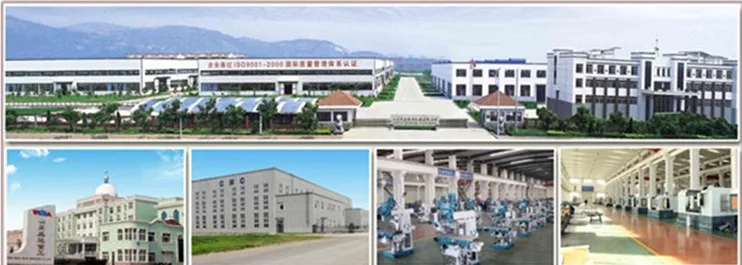

Company Information

GMC 0916 CNC gantry-type heavy cutting machining center small gentry type machining center

1. We are the biggest manufacturer in our city. Our products includes milling machine, drilling machines, cnc machines etc.

2. We attend many home and abroad exhibitions every year. In China, we attend Beijing or Shanghai exhibition, Canton fair. In abroad, we attend EMO, Russia exhibition, Brazil exhibition etc.

3. Our market covers more than 70 ountries and regions, especially Europe & America market.

4. We have got many certifications, such as CE,ISO etc.

GMC 0916 CNC gantry-type heavy cutting machining center small gentry type machining center
