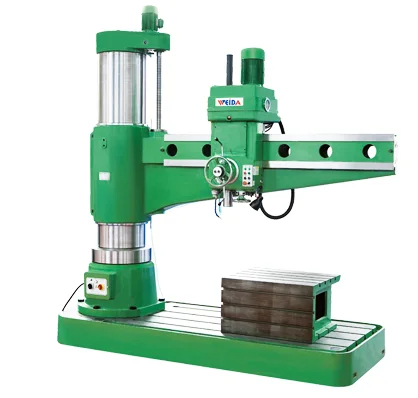

레디얼 드릴링
가격협의- 분류 드링링머신
- 제조회사 중국 신품
- 제조년도 2023년 11월
- 제품위치 해외
- 제품상태 아주좋음
- 규격 4081300, 50*1600,63*2000
- 담당자 덕주 코리아
- 이메일 sksea99@hanmail.net
중국 신품 레디얼 취급전문 덕주코리아 문의 010 2845 4417
문의시 바로 바로 상세한 정밀견적 제공합니다
Advantages:
1. Mechanical transmission;
2. Mechanical clamping;
3. Mechanical speed;
4. Automatic take-off and landing;
5. Automatic feeding.
2. Specification

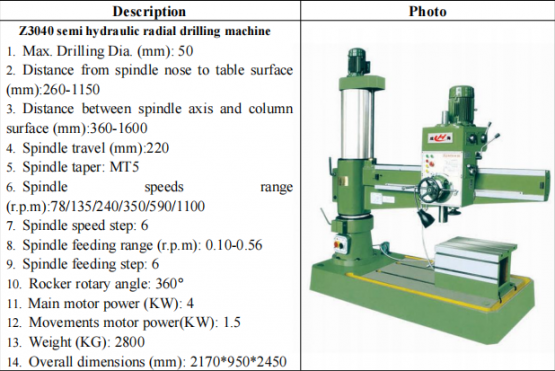

specifications | Z3040×13A | Z3040×13 | Z3040×10 |
Max. drilling Dia. (mm) | Cast iron 40/steel 32 | Cast iron 40/ steel 32 | Cast iron 40/steel 32 |
Distance from spindle nose to table surface (mm) | 260-1050 | 260-1300 | 260-1000 |
Distance between spindle axis and column surface (mm) | 360-1300 | 360-1300 | 360-1000 |
Spindle travel (mm) | 200 | 200 | 200 |
Spindle taper | 4 | 4 | 4 |
Spindle speeds range (r.m.p) | 75-1200 | 75-1200 | 75-1200 |
Spindle speed step | 6 | 6 | 6 |
Spindle feeding range (r.p.m) | 0.10-0.25 | 0.10-0.25 | 0.10-0.25 |
Spindle feeding step | 3 | 3 | 3 |
Rocker rotary angle | 360° | 360° | 360° |
Main motor power (kw) | 2.2 | 2.2 | 2.2 |
Movements motor power (kw) | 1.5 | 0.75 | 0.75 |
Weight (kg) | 1800 | 1500 | 1300 |
Overall dimension (mm) | 1800×810×2300 | 1800×810×2300 | 1500×705×2200 |

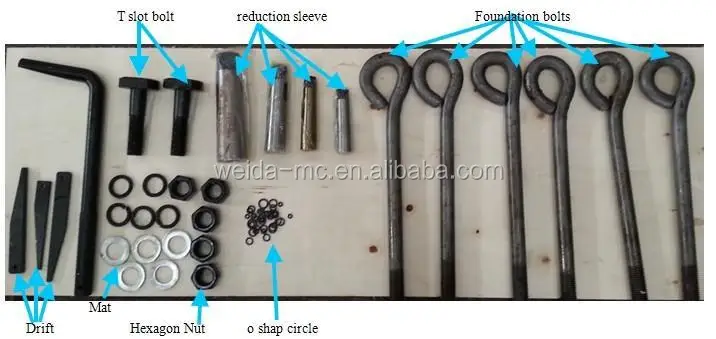

3.Standard accessory list
| Item | specification | Qty |
| Radial drilling machine | Z3040x10 | 1set |
| withdrawl wedge | MT4 | 1piece |
| drill chuck | 1piece | |
| connecting rod | 1piece | |
| English operation manual | 1 set |

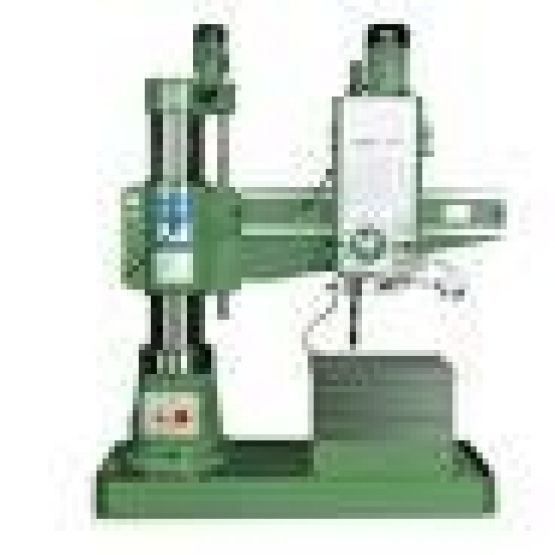

The base of the machine is a large cast iron material on which is mounted a cylindrical vertical column. The base is provided with T-slots, which help the workpiece to be clamped rigidly to the base of the machine
The column is a long, cylindrical shaped part fastened rigidly to the base. The column carries a radial arm that can be raised or lowered by means of an electric motor and can be clamped to any desired position. The radial arm can also be rotated (swiveled) in a complete circle around the column.
