The machine is a kind of high efficiency, high precision, high automation deep hole boring and honing compound equipment. It is used for boring and honing cylindrical workpiece.
In the process of machining, the workpiece rotates and the cutting tool does not rotate.
The cutting oil for boring and honing is different. The machine tool is equipped with two sets of oil supply system and oil tank. When the two processing methods are converted, they need to be switched to their respective oil circuits.
Boring and honing share the same cutting tool tube.
TQ2180 is a cylinder drilling and boring machine, which can perform the function of drilling, boring and trepanning the large workpiece with big diameter. While working, the workpiece rotates slowly and the cutting tool rotates in high speed and feed. BTA chip removal is used while drilling and forward metal chips removal inside boring rod by cutting liquid is for boring.
T21100/T21160 series is a deep-hole machining machine, which can support the process of drilling, boring and trepanning the large workpiece with big diameter. While working, the workpiece rotates slowly and the cutting tool rotates in high speed and feed. BTA chip removal is used while drilling and forward metal chips removal inside boring rod by cutting liquid is for boring.
T2180 is a big cylinder drilling and boring machine, which can perform the processing function of drilling, boring and trepanning the large workpiece with big diameter. While working, the workpiece rotates slowly and the cutting tool rotates in high speed and feed. BTA chip removal method is used for drilling and forward metal chips removal inside boring rod by cutting liquid for boring.
This series of machine is suitable for drilling, boring and rolling the center hole of shaft parts (hydraulic cylinder, air cylinder, steel pipe, drilling tool, etc.). Drilling adopts BTA processing method; PLC control system and touch screen; The rotary seal of the oil pressure head adopts the newly designed oil leakage proof structure, and can effectively absorb the vibration of the bar of cutting tool; The cooling system is equipped with an oil tank on the ground.
T21100/T21160 series is a deep-hole machining machine, which can support the process of drilling, boring and trepanning the large workpiece with big diameter. While working, the workpiece rotates slowly and the cutting tool rotates in high speed and feed. BTA chip removal is used while drilling and forward metal chips removal inside boring rod by cutting liquid is for boring.
The machine is a deep hole processing machine, which can complete the drilling, boring and trepanning of deep holes of heavy parts with large diameter. Suitable for maximum drilling diameter Φ 210mm, maximum trepanning diameter Φ 500mm, maximum boring diameter Φ2000mm workpiece with length not more than 25m.
The machine is a specially used for boring long and thin pipes. It adopts the processing mode of workpiece rotation (passing through the spindle hole of headstock) and cutting tool bar is fixed and only for feed motion. When boring, the cutting fluid is supplied by the oil pressure head, and the cutting chips are discharged forward. The cutting tool feed adopts AC servo drive system to realize stepless speed regulation. Headstock adopts multi-stage gear speed change, with a wide speed range. Mechanical locking device is used for clamping of the oil pressure head and workpiece.

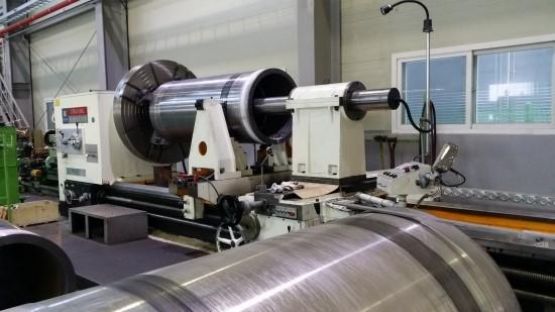

T2150 deep hole drilling and boring machine is the heavy machine tool. The workpiece is positioned by a taper plate while boring, and that is clamped by a three-jaw chuck during drilling. The oil pressure head adopts the spindle structure, which greatly improves the bearing performance and the rotation accuracy. The guide way adopts a high rigid structure suitable for deep hole machining, with large bearing capacity and good guiding accuracy; The guide way is quenched and has high wear resistance. The machine tool has the functions of drilling, boring, rolling and trepanning. Suitable for machining the center hole of shaft parts. PLC control system and touch screen are adopted for simple operation; The above ground oil tank is adopted for the cooling system.
T2150 deep hole drilling and boring machine is the heavy machine tool. The workpiece is positioned by a taper plate while boring, and that is clamped by a three-jaw chuck during drilling. The oil pressure head adopts the spindle structure, which greatly improves the bearing performance and the rotation accuracy. The guide way adopts a high rigid structure suitable for deep hole machining, with large bearing capacity and good guiding accuracy; The guide way is quenched and has high wear resistance.
ZSK2110B CNC deep-hole drilling machine adopt BTA chip removal to drill small diameter deep-hole workpieces, is very suitable for petroleum drill collar workpiece. The biggest characteristic of this machine is that: the front end of workpiece which near to the oil pressure head is clamped by double chucks and the rear end is clamped by annular steady rest.
T2163 is special equipment for machining deep cylindrical hole of workpieces. It can be perfectly suited for drilling, boring and trepanning through holes, blind and step hole in workpiece: such as, spindle of various kinds of machines, many kinds of hydraulic cylinders and cylinders. It can perform not only drilling and boring, but also rolling and trepanning. The method of the internal-removal (BTA) chip is adopted in drilling, and external metal chips removal is used for boring and trepanning.
ZSK2110B CNC deep-hole drilling machine adopt BTA chip removal to drill small diameter deep-hole workpieces, is very suitable for petroleum drill collar workpiece. The biggest characteristic of this machine is that: the front end of workpiece which near to the oil pressure head is clamped by double chucks and the rear end is clamped by annular steady rest.
This machine is a deep hole processing equipment for drilling holes with 3D workpiece. It is a high-efficiency, high-precision and high-automatic machine tool for drilling small holes with external chip removal method (gun drilling method). Through one continuous drilling, the processing quality that can be guaranteed by the general drilling, expanding and reaming procedures can be achieved. The hole diameter accuracy can reach IT7-IT10, the surface roughness can reach Ra3.2-0.04μm, and the straightness of the hole center line is ≤0.05mm/100mm.

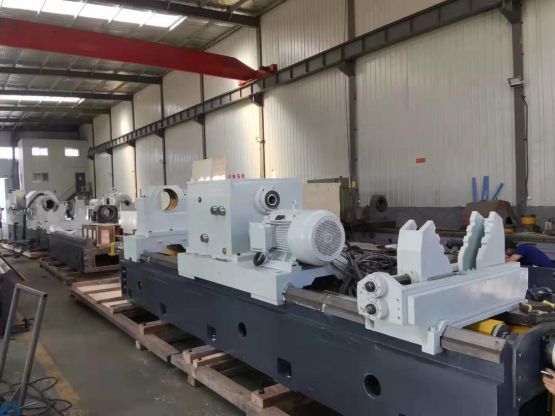

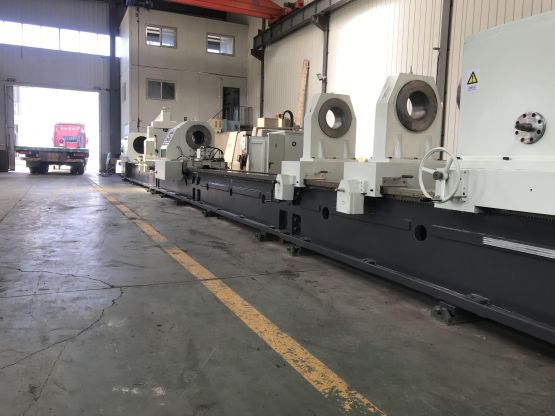

All our products have to go through three separate checks throughout the whole manufacturing process: materal, every part for assembly and accuracy inspection or finished products, We control quality from raw materials, we always select the best quality raw materials, and we have an quality inspector for each process, quality is always our top concerned.
The machine tool is a special CNC deep hole drilling machine for processing tube sheet workpieces. Controlled by CNC system, it can be used to process workpieces with coordinate hole distribution. The X-axis drives the cutting tool and column system to move laterally, and the Y-axis drives the cutting tool system to move up and down to complete the positioning of workpiece. The Z-axis drives the rotating tool system to move longitudinally to complete deep hole drilling.
This machine is a deep hole processing equipment for drilling cylindrical bar materials. It is a high-efficiency, high-precision and high-automatic machine tool for drilling small holes with external chip removal method (gun drilling method). Through one continuous drilling, the processing quality that can be guaranteed by the general drilling, expanding and reaming procedures can be achieved. The hole diameter accuracy is IT7-IT10, the surface roughness is Ra3.2-0.04μm, and the straightness of the hole center line is ≤0.05mm/100mm.
This machine tool is a special machine tool with high efficiency, high precision and high automation. It can adopt gun drilling and BTA drilling. It can not only drill, but also boring, so as to further improve the machining accuracy and surface roughness of the workpiece.
HM series Sunnen type deep hole honing machine is mainly used for finishing the cylindrical inner hole surface of various hydraulic cylinders, steel pipes, etc. The aperture accuracy is above IT7, and the surface roughness is Ra0.2-0.4 μ m.
This deep hole powerful honing machine is equipped with PLC controller or CNC system (optional), linear rolling guide way, AC servo motor, grinding rod adopts stepless speed regulation, stable commutation, convenient speed regulation, easy to ensure the accuracy of hole size, and reduce labor intensity. In the honing process, the sand rod and the workpiece always maintain constant pressure, so that the sand rod can be strongly ground. It ensures the high efficiency of deep hole machining, and is suitable for rough and fine honing of general cylindrical deep hole parts. This type of machine tool can also be used for partial honing to correct the taper and ellipticity of parts and the partial hole error.
2MK2125, 2MK2135 and 2MK2150 series CNC deep hole honing machine adopt iron casting bed, is suitable for honing and burnishing cylindrical deep-hole parts, such as various hydraulic cylinders. It can also perform honing and burnishing step holes, and the hole diameter accuracy after honing can reach IT8-IT9, the surface roughness can reach Ra0.2-Ra0.4μm. it can also repair the taper, ellipticity and partial hole tolerance with the partial honing. It can directly perform high efficiency honing of cold drawing steel pipes. This series deep hole honing machine is an ideal machine for deep-hole machining with high accuracy and high efficiency.
TCS2150 is special used for machining deep hole of the cylinder, it can drill, bore and roll all kinds of holes of hydraulic cylinders and spindles of the machine.
Metal chips removing method adopt BTA method while drilling, it means that the metal chips will be removed to the receiver in the end of the machine through inside of the drilling rod. And the metal chips removing method adopt forward removing method while boring, boring method is push boring.
ZT type trepanning head Trepanning head is also named as annular drill, it is an economic, productive and high quality deep hole tool, its productivity is more than times the ordinary drill. It is better to use trepanning tool for machining the hole above 50mm in diameter. This tool is applicable to the following conditions: 1) Hole diameter is 50mm above, and with the close tolerance on straightness and position precision. 2) 2) the length-to-diameter ratio of the hole is in the r...
The cutting parameters are for reference only and adjusted according to the actual processing conditions. Compared with the mixed lotion, the pure oil can improve the service life of the tool.
SRB Pnumatic tools SRB head Boring rod SRB head Boring rod SRB head Boring rod Φ35- 37 Φ30 Φ38-45 Φ43 Φ46-56 Φ43 Φ57-60 Φ51 Φ61-69 Φ56 Φ70-89 Φ65 Φ90-120 Φ80 Φ121-139 Φ100 Φ140-169 Φ130 Φ170-230 Φ160 Φ231-400 Φ220 Operation: the tool moves forward for skiving, and backward fo roller burnishing. With 2 groups of inserts on the top end, it can achieve high sizing precision and good shape control. With 4 groups of guide pad, it can achieve the excellent guidance and balanced ski...
BTA Drilling head This drilling head is a designed by our engineer, which is specially used for processing difficult material, such as stainless steel, alloy steel, titanium alloy and other special materials, the drilling head has the characteristics of good chip breaking performance, strong bladed resistance and high durability. It is widely used in military industry, aerospace, thermal power, boiler, petroleum and other industries. Single tube type deep hole drilling head Dia. of dril...
TJ type roller-adjustable rough Comparing to the conventional boring head, the new type has the following advantage: Guide by roller, with multi-point support and stable guide performance. The point contact between the roller and the inner wall of the workpiece reduces the friction and prolongs the using life; more importantly, it avoids the trouble of replacing frequently the guide pad. The productivity can be increased by double. The size can be adjusted in the range of 5mm, it doesn’t need...
