덕주코리아 문의 010 2845 4417

1.5호 밀링기 취급전문

1.5호기  밀링기  취급 30여년 대만산/중국산

이젠  중국산 1.5호기  밀링기를 주로  취급합니다

1. 스핀들 테이퍼

종전모델 대표 표준타잎 R-8로 하느냐? NT-30번으로 하느냐?

* 훼이스컷팅 작업물량이 많다면 NT-30선택이 좋다고 봄

* 각별히 NT40번으로 원할시는 슬리브 직경도 늘리는 것이 필요한지? 87MM--> 105MM

슬라이드 구조도 도브테일(DOVETAIL) 보다 정방형구조가 요구 되는 지?

테이블 길이 연장도 필요한지 1270MM -->1370MM

2. 디지탈 2축/3축 장착여부

3. Z축 상하 모터 장착여부

4. X축 가로 이송/Y축 전후이송 자동이송 파워피드 장치 장착여부

5. 절삭유장치/윤활유 급유장치 장착

6. 콜렛트 척/드릴척/클렘핑킷츠/6" 바이스 혹은 8" 바이스
7. 최고급 사양 도입 시

step pully head type ---> VARIABLE SPEED MOTOR

tooling draw bar type ---> power (pnematic power )

control panel ---> HANGER TYPE결합 with DRO

8. 특별부품 추가 구비 여부 OPTIONAL ACCYS

* SLOTTING HEAD (스롯팅헤드)*분할장치 (DIVIDING HEAD)

*로타리 테이블 (수직형/복합형)*보오링 헤드

X6325 Turret milling machine optional accessories:

Electric Power feed X,Y axis

DRO ON X,Y,Z-AXIS,SINO brand

SLOTTING HEAD

Machine VICE

Variable/Frequency speed mill head

Milling chuck collets ER40-R8/15PCS

58PCS Clamping kits

Products Description

The main performance characteristics:

1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application：
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Product main technical specifications:

Specifications	Units	X6325
Table size	mm	1270x254(10”x50”)
Table travel	mm	780/400/420
T slot(number-width-pitch)	mm	3-16-50
Spindle taper		standard:R8 optional:ISO40
Spindle speed range	rpm	standard:16 steps, 50HZ:65-4500 ,60HZ:80-5440 Optional:variable 65-4000
Spindle travel	mm	127
Spindle feed range	mm	0.04,0.08,0.15(3 steps)
Distance between spindle nose and table surface	mm	90-510
Main motor power	kw	2.2
Head rotation (left - right )	°	±90°
Head rotation (front - rear)	°	±45°
Weight	kg	1400
Overall dimension	mm	1550x1650x2250

Details Images

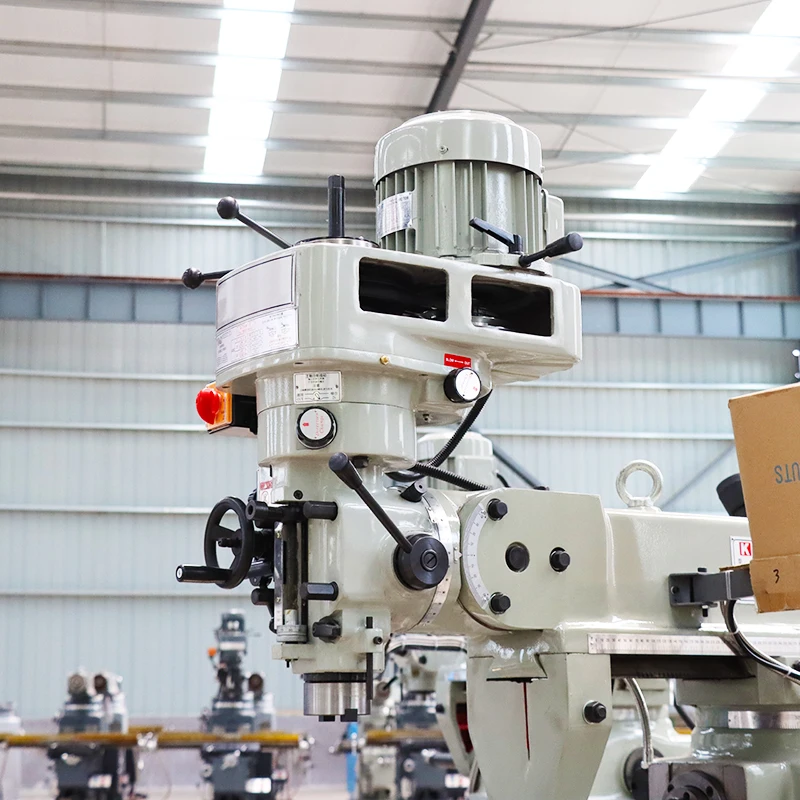

Taiwan turret milling head

Taiwan turret milling head can be rotated 45° (front and back) and rotated 90° (left and right)

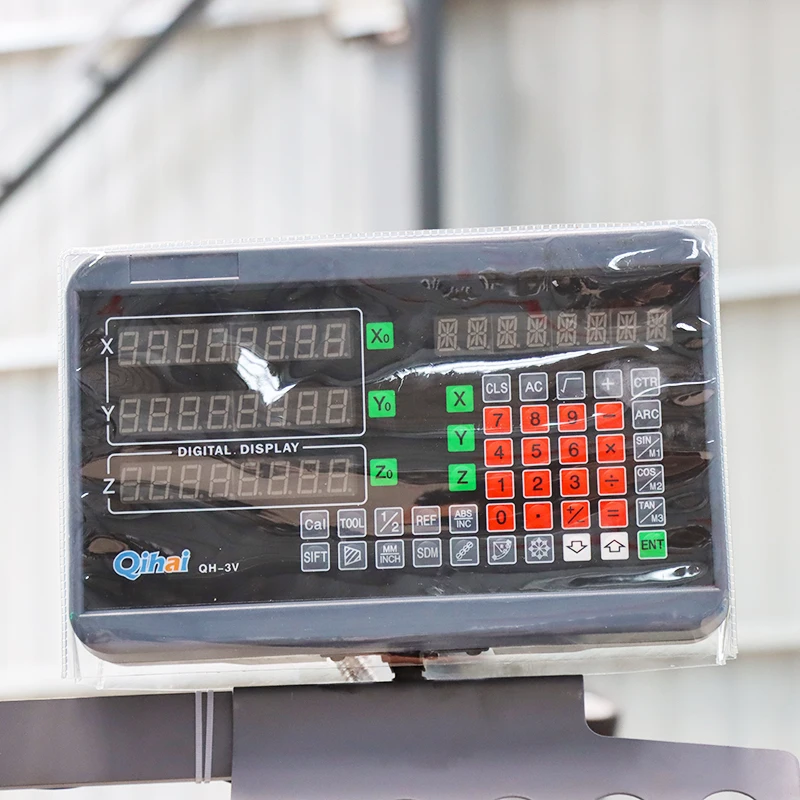

3-axis DRO system

Optional 3-axis digital readout

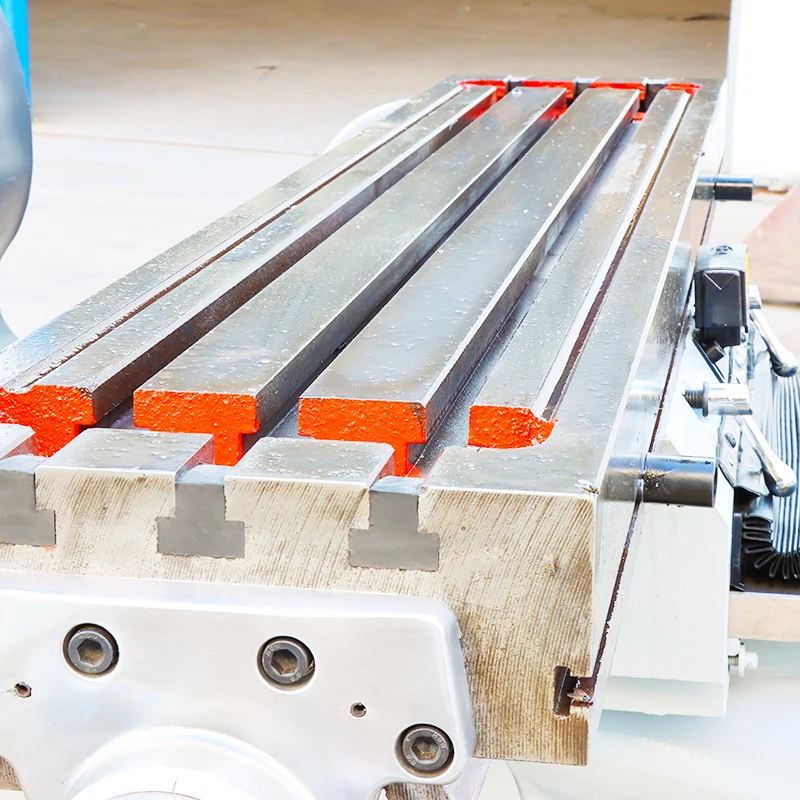

working table

Overfrequency automatic quenching precision grinding Guide rail scraping

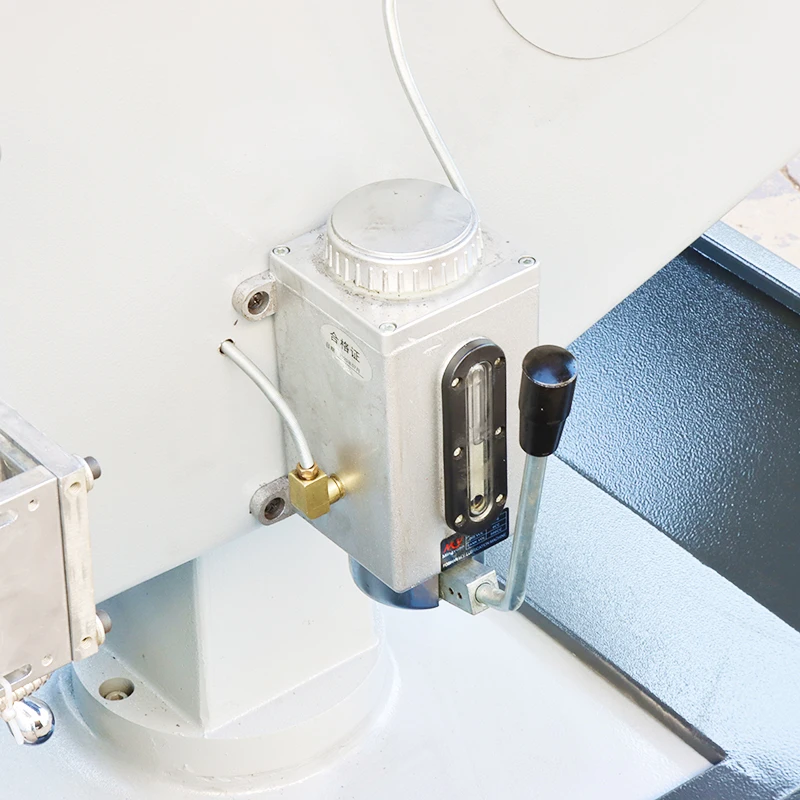

Mechanical/Electric Pump Lubrication

Standard mechanical lubrication Optional electric pump lubrication

X/Y/Z automatic feed

X/Y axis automatic feeding Z axis electric lift Improve work efficiency

TURRET MILLING MACHINE FEATURES:
Feature of X6323
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6325:
Rectangular guide way on Y-axis and Z-axis is feature a good rigidety
The guide way on saddle is lined with TF wearable material
The worktable surface and 3 axis guide way are hardened and precision ground
Feature of X6325D:
Rectangular guide way is adopted both on Y and Z axis.
The guide way on saddle is lined with TF wearable material. Which makes the machine stably and rigidly, also makes it beautiful and easy to operate.5HP milling head motor and quill diameter is 100MM
Feature of X6333
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6330A
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.

MODEL	X6323A	X6325	X6325D	X6333	X6330A
Table size	230*1067 230*1246	254*1270 254*1370	254*1270 254*1370	330*1370 330*1500	305*1370 305*1500
Long travel(mm)	650 840	850 950	850 950	840 1000	870 1000
Cross travel(mm)	305	420	420	368	380
Vertical travel(mm)	350	420	420	450	430
T-slot No.and size(mm)	3x16
Ram travel(mm)	315	470	470	500	500
Distance from spindle nose to table surface(mm)	0-350	0-405	0-405	0-450	0-350
Spindle hole taper	Standard:R8	standard:ISO40
Spindle travel(mm)	127
Spindle speed(r.p.m)	standard: shift grade 16, 50HZ 65-4500,60HZ80-5440
	optional:variable:60-4200
Auto.quill feed	Three steps:0.04/0.08/0.15mm/revolution
Spindle motor	2.25kw/3hp	2.25kw/3hp	3.75kw/5hp	3.75kw/5hp	3.75kw/5hp
Head swivel	90°
Head tilting	45°			Fix
Dimension of package	1.4x1.48x2.03	1.52x1.55x2.08	1.52x1.55x2.08	1.8x2.02x2.18	1.57x1.65x2.08
G.W/set	1100	1550	1590	2300	1750
