정반
가격협의- 분류 기타
- 제조회사 중국
- 제조년도 2023년 08월
- 제품위치 해외
- 제품상태 아주좋음
- 규격 2500*5000
- 담당자 덕주 코리아
- 이메일 sksea99@hanmail.net
중국 신품 정반 문의 덕주코리아 010 2845 4417
Product Name | Flexible cast iron welding working platform T Slot base hole plate |
Material | High-strength cast iron, HT200-300 |
Specification | 100*100~3000*8000 or customize |
Surface | Flat or V, T, straight-shaped slots and tapped holes, long holes, grid lines |
Surface Treatment | Hand-scraped, finish-milling or ground finish |
Foundry Technology | Sand casting or centrifugal casting |
Molded Type | Resin sand molding |
Precision grade | 0~3 |
Surface Hardness | HB170-240 |

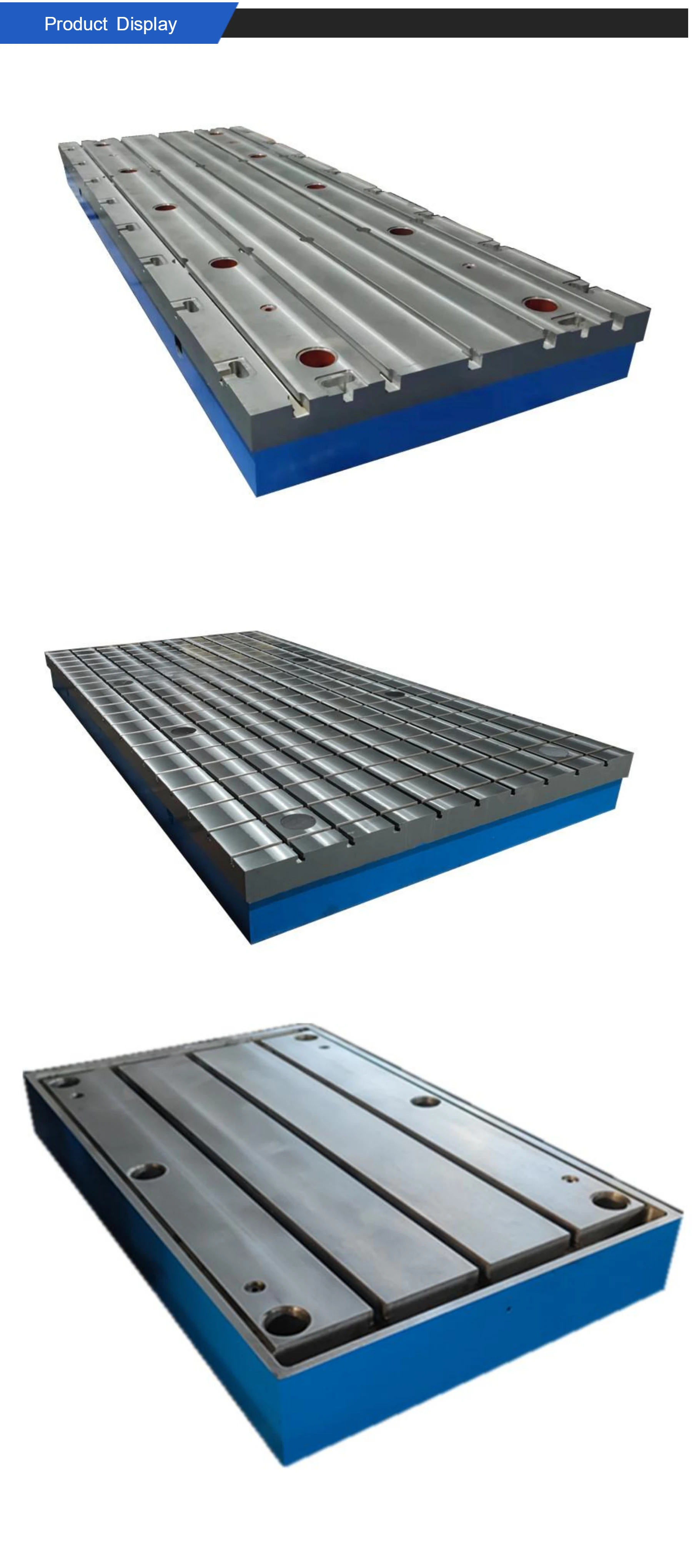

Finished Products Show :
Profesional:
Professional nitriding processing technology research and development, independent innovation.Professional design.
No | Item | Data | ||
1 | Material | High-strength cast iron, HT200-300 | ||
2 | Type | 100*100~3000*8000mm or customize | ||
3 | The Surface | Flat or V, T, straight-shaped slots and tapped holes, long holes, grid lines as you want | ||
4 | Surface Treatment | Hand-scraped, finish-milling or ground finish | ||
5 | Foundry Technology | Sand casting or centrifugal casting | ||
6 | Molded Type | Resin sand molding | ||
7 | Hardness of the working surface | HB170-240 | ||
8 | Working temperature | (20±5)℃ | ||
Package | Wooden box |
Product parameters | |
Material | High-strength cast iron, HT200-300 |
Type | 100*100~3000*8000mm or customize |
The Surface | Flat or V, T, straight-shaped slots and tapped holes, long holes, grid lines as you want |
Surface Treatment | Hand-scraped, finish-milling or ground finish |
Foundry Technology | Sand casting or centrifugal casting |
Molded Type | Resin sand molding |
Precision grade | 1, 2, 3 |
Hardness of the working surface | HB170-240 |
Working temperature | (20±5)℃ |
Package | Wooden box |
